Precision in a compact package is delivered by the Skout Epoch Compact PCP Air Rifle.
Engineered in the USA for shooters who value accuracy, control, and adaptability, this platform is built around a streamlined hammerless valve system, dual externally adjustable regulators, and a short 17-inch barrel. As a result, consistent performance is offered in a 28.5-inch overall length that weighs approximately 8.6 lbs.
Why the Skout Epoch Compact PCP Air Rifle Is Chosen
Field mobility is combined with bench-level consistency. Because a 300cc removable high-pressure bottle is used, fill pressure of 4,350 PSI (300 BAR) is supported while bulk is reduced compared with full-size Epoch configurations. Moreover, an integrated moderator is fitted so report is kept at a medium level. Consequently, backyard practice, pest control, and small-game work can be approached with greater discretion.
Furthermore, tool-free barrel change capability is provided. Therefore, caliber swaps among supported options can be completed without extra tools. In addition, magnetic-lock magazines are supplied so loading is simplified and seating is made more secure.
Core Features at a Glance
The following capabilities are incorporated into the Skout Epoch Compact PCP Air Rifle:
- Sidelever PCP action with streamlined, hammerless valve system
- Dual externally adjustable regulators (no degassing required for pressure changes)

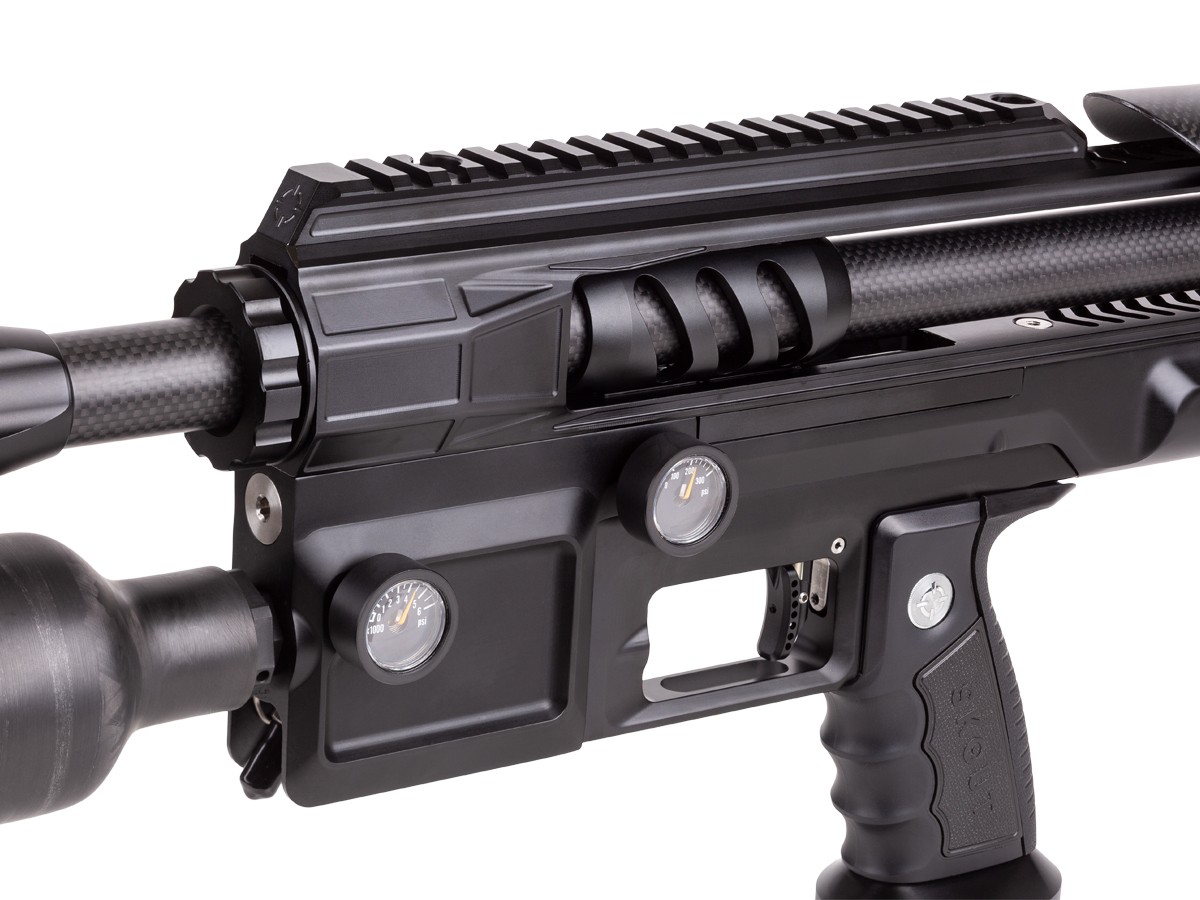

- Three integrated manometers for cylinder, valve, and pilot monitoring

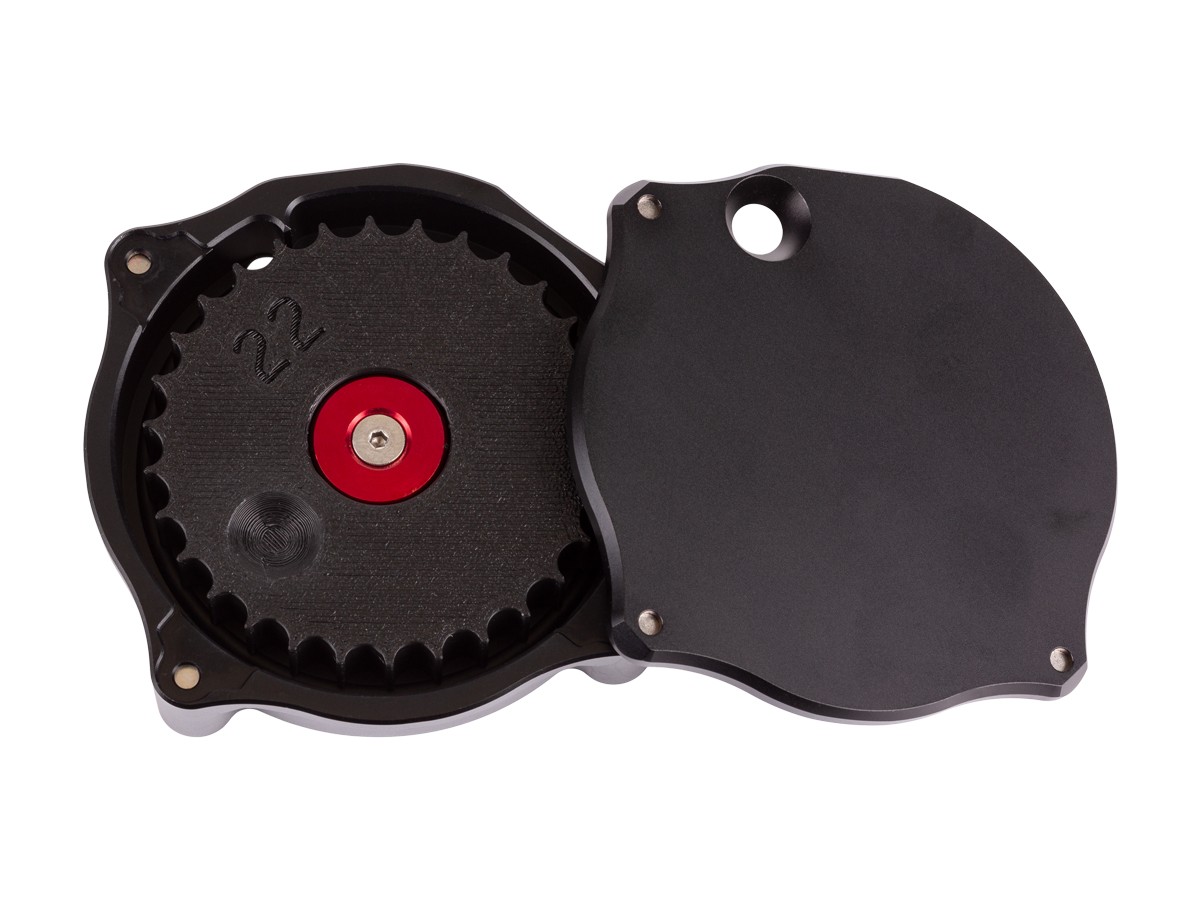

- Magnetic-lock rotary magazine (30 rounds in .22, 25 in .25, 22 in .30)

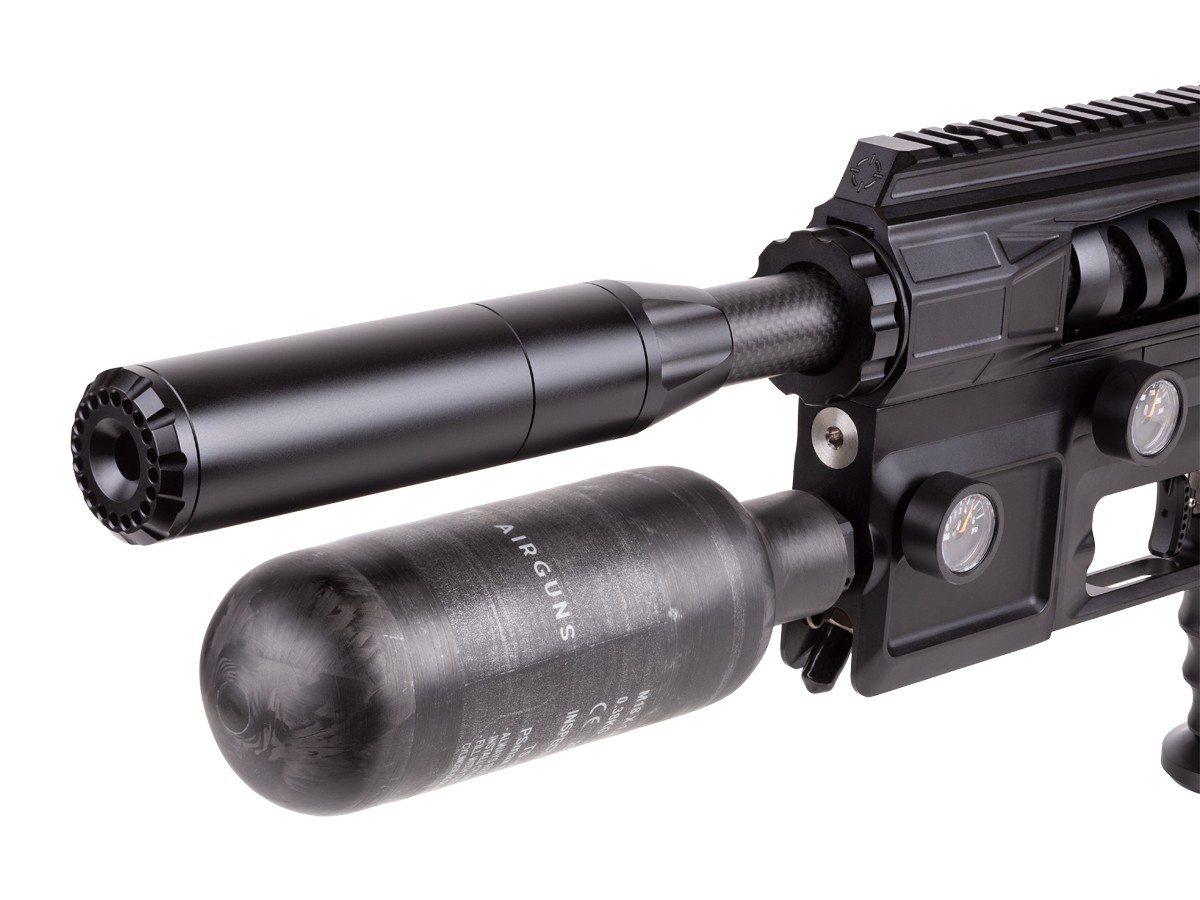

- Integrated moderator and 17-inch rifled barrel
- Two-stage adjustable match trigger with digital safety options
- Onboard electronic control for dwell, firing mode, and fire timer
- Height-adjustable cheekpiece and modular textured pistol grip
- Lightweight Picatinny optics rail
- Removable 300cc bottle filled to 4,350 PSI / 300 BAR
- Custom Plano hard case, reseal kit, and tool set included
- Designed and manufactured in the USA
Performance, Calibers, Power, and Accessories
Velocity and energy figures are published for common projectiles. Accordingly, approximately 975 FPS and 52.78 FPE are listed for a 25-grain .22 pellet, while about 915 FPS and 70.66 FPE are quoted for a 38-grain .22 slug. Likewise, roughly 935 FPS and 64.08 FPE are associated with a 33-grain .25 pellet, and about 980 FPS with 95.99 FPE is given for a 45-grain .30 pellet. Shot count per fill varies with tune, regulator setting, and projectile; therefore, efficient use of the 300cc reservoir is expected when settings are matched to the task.
Additionally, power can be tailored through the dual regulators and electronic dwell control. As a result, sub-12 ft-lbs practice sessions and higher-output hunting setups can both be accommodated where local law allows. Meanwhile, FAC or equivalent licensing requirements must be observed by the owner; responsible, legal use is expected at all times.
Regulator, Electronics, and Trigger Control
Pressure can be adjusted externally without emptying the bottle. Consequently, pellet or slug programs can be refined on the range. Moreover, valve timing, firing mode (including hunt- and match-style options), and fire-timer duration can be programmed through the onboard system. Subsequently, the next shot can reflect the new parameters.
The two-stage match trigger can be adjusted for pre-travel, over-travel, shoe height, and shoe angle. Therefore, a crisp, repeatable break is made available to a wide range of hand sizes and shooting styles. Inclusive fit is further supported by the height-adjustable cheekpiece and modular grip panels, so a stable cheek weld and comfortable hold can be achieved by more shooters.
Practical Use: Range, Field, and Everyday Handling
Because overall length is held to 28.5 inches, movement through brush, vehicles, and tight shooting positions is simplified. In addition, the bullpup-style layout keeps the action compact while a full-length optics rail is retained. Optics, bipods, and other accessories can therefore be mounted without crowding the action.
Furthermore, the sidelever cycle is designed for rapid follow-up shots. Combined with high magazine capacity, extended strings can be fired before a reload is required. Meanwhile, three gauges allow bottle, valve, and pilot pressures to be checked at a glance, so fill status is monitored without guesswork.
Maintenance access is supported by the included reseal kit and tools. Likewise, the removable bottle simplifies filling from a compressor or tank. A custom hard case is supplied so transport and storage can be completed with protection for the rifle and accessories.
Fit, Safety, and Responsible Ownership
An adjustable stock, cheekpiece, and grip are provided so a comfortable, repeatable position can be found by shooters of different statures. Safety features include a manual/digital safety architecture and medium report from the integrated moderator. Nevertheless, eye and ear protection, a safe backstop, and full compliance with local airgun laws are required. Hunting use should be limited to legal species and distances appropriate to the selected caliber and energy.
Who This Platform Serves
Precision-oriented target shooters, small-game hunters, and pest-control users are served by the same chassis. Because caliber and power can be changed, a single platform can be adapted rather than replaced. Consequently, value is increased for anyone who wants one compact PCP that can be tuned rather than a collection of single-purpose rifles.
Made-in-USA construction, a 3-year limited warranty on many retail listings, and a complete accessory package (case, reseal kit, tools, magazine) are offered so the rifle can be put into service immediately. When consistent shots, compact carry, and digital fine-tuning are required, the Skout Epoch Compact PCP Air Rifle is positioned as a modern, inclusive choice for serious airgun enthusiasts.
Barra Air Rifles, BB Guns, PCP Systems, Electric Airguns, and Advanced Shooting Platforms
The modern airgun market offers a wide range of shooting platforms designed for beginners, enthusiasts, and experienced shooters. From traditional BB gun designs to advanced pneumatic systems, today’s technology provides improved accuracy, power, reliability, and versatility. The Barra product range has gained attention among airgun users because of its combination of innovative engineering and practical shooting performance.
Popular models include the Barra 300Z, Barra 350Z, Barra 250Z, Barra 400, Barra 400E Gen 2, Barra 400 E, 400E, 400 e, Bara 400E, Barra 1100Z, Barra 1100Z Gen 2, Barra 1200G, Barra 100, BA-400, Barra 1866, Barra 1866 Rosie Bundle, Barra 270Z, Barra Sportsman 900, and Sportsman 900. These platforms are designed for different shooting preferences, including recreational shooting, target practice, and precision applications.
A BB gun rifle provides a classic shooting experience, while a BB rifle offers a compact and accessible option for users interested in recreational shooting. Many shooters also search for a BB gun rifle with scope because an optic can improve aiming consistency and overall shooting control. Traditional accessories and variations include BB rifle pump, BB gun pump, and BB gun rifle pump systems.
PCP Air Rifle and Compressed Air Technology
Advanced airgun technology has been transformed through precharged pneumatic systems. A PCP rifle uses stored air pressure to deliver consistent performance, making it a popular choice among users who want accuracy and power. A PCP air rifle operates through compressed air stored inside a reservoir, allowing multiple shots before refilling.
Many shooters research air rifle compressed air technology because it provides smooth operation, reduced vibration, and improved shot consistency. A compressed air pellet guns platform uses high-pressure air to propel pellets efficiently, while a high pressure air rifle is designed for users who require increased performance.
Other related systems include air gun compressed, compressed air guns, and compressed air rifle designs. These platforms are commonly paired with equipment such as a PCP pump for air rifle and other filling accessories.
For new users asking PCP air rifle meaning, what is a PCP air rifle, what is PCP air rifle, or whats a PCP gun, the answer refers to a precharged pneumatic system that stores compressed air before shooting. A pre charged pneumatic air rifles setup provides an alternative to spring-powered designs and is widely used for precision shooting.
Barra PCP Models and Caliber Options
The Barra 250Z PCP air rifle is designed for shooters looking for a powerful and compact pneumatic platform. The Barra 250Z for sale market includes different configurations, including the Barra 250Z .25 cal version.
Large-caliber airguns are becoming increasingly popular, with options such as a 25 cal air rifle 1000 fps, 25 caliber pellet rifle, .25 PCP air rifle, PCP 25 caliber air rifle, 25 caliber air rifle, and 25 Z configurations.
These larger-caliber platforms are designed for users who want increased energy and performance compared with smaller calibers. Other popular caliber choices include the 22 cal air rifle, 22 caliber air rifle, 22 caliber pellet gun, and 22 pellet rifle 1200 fps options.
Electric BB Guns and Automatic Airgun Platforms
Electric-powered shooting systems have created another category within recreational shooting. An electric BB gun uses battery-powered technology to provide a unique shooting experience. Related designs include electric pellet gun, electric air gun, air gun electric, electric rifle, battery powered air gun, electric BB guns, electric guns, and airsoft air guns electric.
Users searching for high-speed systems may look for terms such as most powerful fully automatic BB gun, full auto BB gun electric, best full auto BB gun, best full auto BB guns, full auto BB gun 1000 fps, full auto BB gun, and fully automatic BB gun.
These platforms are designed for users who want rapid operation and modern features. Performance-focused searches may also include strong BB guns when comparing powerful recreational shooting options.
Pellet Guns, Break Barrel, and Traditional Air Rifles
Traditional airgun designs remain popular because of their simplicity and reliability. A pellet gun provides a practical option for target shooting, while a pellet rifle offers improved stability and accuracy.
A pellet sniper platform is designed for users interested in precision shooting. Classic spring-powered systems include the break barrel pellet gun 1200 fps, break barrel, and single shot 22 break barrel rifle.
For beginners researching what is a break barrel air rifle, this system works through a hinged barrel mechanism that compresses a spring or gas piston before each shot. These designs remain popular because they require minimal additional equipment.
Additional traditional options include air gun pump action, air rifle pump action, pump pellet gun, and pump BB pistol platforms.
Barra Sportsman and Additional Airgun Platforms
The Sportsman 900 air rifle and Sportsman 900 BB gun provide versatile options for recreational users. These models are part of the wider selection of Barra shooting products designed for different experience levels.
Other available platforms include 250Z, Barra 300Z, and various modern Barra configurations. Accessories such as pellet trap for 1200 fps, camouflage pellet guns, and Mossy Oak 308 products allow shooters to customize their equipment.
Users interested in alternative power systems may also explore a CO2 rifle, lever action air rifle, and lever action PCP air rifle. These designs combine traditional handling with modern airgun technology.
Choosing the Right Airgun System
Selecting the right platform depends on shooting purpose, preferred caliber, power requirements, and experience level. A PCP review can help users compare different pneumatic systems, while PCP shooting provides insight into the performance advantages of regulated air platforms.
Whether choosing a Barra model, a compressed air system, an electric shooting platform, or a traditional spring-powered design, understanding features and applications helps buyers select the correct equipment.
From the Barra 400E price to advanced PCP technology and modern electric systems, today’s airgun market provides a wide range of choices for recreational shooters, target enthusiasts, and experienced users seeking reliable performance.
Calibres, FAC Considerations, Power Output, and Accessories
A versatile multi-calibre architecture is employed by the Skout Epoch Compact PCP Air Rifle so that a single compact chassis can be adapted to different projectiles, energy levels, and legal environments. Because a tool-free barrel-change system is incorporated, supported liners can be exchanged without a workshop setup. Consequently, .22, .25, and .30 configurations are commonly offered on the Compact platform, while published velocity and energy figures are tied to specific pellet and slug weights. Inclusive use is therefore supported: target practice, pest control, and small-game work can be approached by shooters of varied experience once local licensing and power limits have been confirmed.
Supported Calibres and Magazine Capacity
Three primary Compact chamberings are listed by major retailers. Accordingly, a 30-round magnetic-lock magazine is paired with .22 (5.5 mm), a 25-round magazine is supplied for .25 (6.35 mm), and a 22-round magazine is provided for .30 (7.62 mm). Moreover, magnetic closure and automatic seating are used so that pellets or slugs can be loaded with reduced risk of misalignment. In addition, the magazine must be rotated fully in some higher-capacity or larger-calibre patterns before every pocket is filled; therefore, the loading sequence published for that magazine should be followed.ar bb gun
Twist rates on the 17-inch Compact barrel are published as approximately 1:15.75 for .22 and 1:24 for .25 and .30. As a result, a useful range of diabolo pellets and slugs can be stabilised when the projectile is matched to the liner. Furthermore, additional barrel inserts of matching calibre and “bite” profile are part of the broader Epoch design language, so grouping consistency across brands can be improved after a short testing session. Meanwhile, only projectiles intended for PCP rifles should be used; damaged, oiled, or undersize ammunition should be rejected so that the valve and barrel remain protected.
FAC, Legal Power, and Responsible Tuning
Power output is not fixed at a single factory setting. Dual externally adjustable regulators and electronic dwell control are provided so that energy can be raised or lowered without degassing the 300 cc bottle. Consequently, a sub-12 ft-lbs (approximately 16 J) programme can be selected where unlicensed use is restricted, while higher FAC-level output can be unlocked where a Firearms Certificate or equivalent authorisation has been issued.
Published maximum figures for the Compact are commonly listed as follows: about 975 FPS and 52.78 FPE with a 25-grain .22 pellet; about 915 FPS and 70.66 FPE with a 38-grain .22 slug; about 935 FPS and 64.08 FPE with a 33-grain .25 pellet; and about 980 FPS and 95.99 FPE with a 45-grain .30 pellet. Therefore, legal classification must be verified in the shooter’s jurisdiction before any high-power tune is applied. In the United Kingdom and many similar regimes, energy above 12 ft-lbs for a rifle requires FAC; other countries apply different joule or muzzle-energy caps, age limits, and transport rules. Inclusive ownership means those rules are respected by every user, regardless of experience.
Regulator pressure can be changed on the rifle without emptying the cylinder. Likewise, dwell (valve-open time) can be programmed in milliseconds through the onboard system. As a result, a mild practice curve and a hunting curve can both be stored and recalled. Subsequently, the next shot reflects the new parameters, so wasted air and inconsistent strings are reduced. Shot count per fill is not a single published number for every tune; it varies with caliber, projectile mass, regulator set-point, and dwell. Efficient use of the 300 cc, 4,350 PSI (300 BAR) reservoir is therefore expected when settings are matched to the task rather than left at maximum.
Power Delivery and Consistency
A streamlined hammerless valve is actuated with very short travel. Combined with dual regulators and three integrated manometers, bottle, valve, and pilot pressures can be monitored at a glance. Consequently, fill status and regulator health can be checked before a string is started. Medium report is produced by the integrated moderator, so neighbour-friendly practice remains more practical than with an unshrouded barrel of similar energy.bara 250z
Because electronic fire-control options (hunt, match, and timer modes) are included, follow-up shots can be managed without a mechanical hammer spring that fatigues over time. Moreover, a two-stage match trigger can be adjusted for pre-travel, over-travel, shoe height, and shoe angle. Inclusive fit is thereby supported: a light, repeatable break can be set for smaller hands or for precision bench work, while a slightly heavier, safer pull can be preferred for field use.250 z
Accessories, Optics, and What Is Included
A lightweight Picatinny optics rail is fitted so that a wide range of scopes, red dots, and night-vision or thermal units can be mounted. Additional M-LOK-style or accessory real estate is more limited on the Compact than on full-size Epoch models, yet bipods, lights, and slings can still be attached where rails or adapters are present. Height-adjustable cheekpiece and modular grip panels are supplied so that eye alignment and hold can be refined without aftermarket stock work.
The following items are typically included with a new Skout Epoch Compact PCP Air Rifle:
- Custom Plano hard case for transport and storage
- Calibre-specific magnetic-lock magazine
- Full factory reseal kit
- Allen wrench / tool set
- Fill probe for the removable 300 cc bottle
Optional extras that are commonly added by owners include spare magazines, extra barrel liners, a high-quality PCP fill adaptor or compressor hose, a spirit-levelled scope mount, and a compact bipod. A 3-year limited warranty is listed by many retailers; registration and proof of purchase should be retained. Maintenance intervals published in the owner’s manual should be observed so that O-rings, the valve, and the electronics remain reliable.b a r r a.bb gunning.barra 250z 25 cal.barra 400e aeg
When calibre, legal power, and accessories are planned together, the Skout Epoch Compact PCP Air Rifle can be configured as a quiet 12 ft-lbs trainer or as a compact FAC hunting tool. Responsible verification of local law, correct projectile selection, and careful regulator and dwell setup remain the foundation of safe, accurate, and inclusive use.full auto electric bb gun.what gen is black 2
Practical Use in Everyday Shooting Environments
A compact, regulated precharged platform is most useful when it can be carried, set up, and fired without drawing unnecessary attention or requiring a long bench. Because overall length is held near carbine dimensions and mass is kept moderate, movement through doorways, vehicles, hides, and woodland edges is simplified. Consequently, the same rifle that is used for quiet evening practice can later be taken into the field for pest work or small-game outings, provided local energy limits and licensing have already been confirmed.
Inclusive participation is supported by adjustable cheek height, modular grip panels, and a two-stage trigger that can be tailored. Therefore, a comfortable, repeatable hold can be found by shooters of different statures and experience levels. Meanwhile, a magnetic-lock magazine and sidelever cycle allow follow-up shots to be delivered without awkward loading gymnastics, so concentration can stay on the target rather than on the mechanism.
Quiet Practice on Private Ground and Club Ranges
Backyard or club use is often the first setting in which consistency is learned. An integrated moderator is fitted so report remains in the medium category; as a result, neighbours and other range users are less disturbed than they would be by an unshrouded barrel of similar energy. Furthermore, dual regulators and programmable dwell allow a mild, efficient tune to be selected. Subsequently, a long string of similar-velocity shots can be produced from the 300 cc reservoir when pellet weight and regulator set-point are matched.
A lightweight Picatinny rail is provided so that a modest-magnification scope or a red-dot sight can be mounted. Eye alignment is then refined with the height-adjustable cheekpiece. In addition, three manometers display bottle, valve, and pilot pressures. Consequently, a fill can be checked before the first shot rather than after a string has already gone soft.
Zeroing is best completed at the distances that will actually be used. Ten to thirty metres are typical for garden pests and plinking; fifty to seventy-five metres are more relevant for small-game practice. Because barrel harmonics and pellet choice interact, several brands and weights should be tested rather than a single “favourite” assumed. Moreover, slugs and diabolo pellets do not always share the same zero; therefore, a separate point of impact should be recorded when slug use is planned.
Trigger settings can be lightened for bench work or left slightly heavier for standing practice. Inclusive coaching is easier when the break is predictable: new shooters can be shown a clean second-stage wall without fighting a heavy, creepy pull. Safety discipline remains non-negotiable. A safe backstop, eye protection, and a clear muzzle direction are required even when power has been turned down.
Pest Control Around Buildings, Yards, and Outbuildings
Rodents, feral pigeons, and similar pests are often taken at short to moderate range where a compact profile is an advantage. Because the action is short, the muzzle can be kept clear of door frames, feeders, and fence wires more easily than with a full-length sporting barrel. Likewise, a medium report and an efficient tune reduce the chance that every shot announces itself across a farmyard.
A .22 programme with a well-chosen pellet is frequently selected for small pests when legal energy is modest. When authorisation for higher output exists, .25 or .30 projectiles may be preferred for larger vermin, provided the shot is taken only at distances where penetration and placement are certain. Inclusive ethics demand that only legal species are engaged and that a quick, humane result is the goal. Wounded animals and unsafe backstops are avoided by waiting for a clear angle.
Magazine capacity of several dozen rounds in .22 means a session can be completed without constant reloading. Nevertheless, unused chambers should not be left charged for weeks in damp outbuildings; moisture and debris are kept out of the action when the rifle is cased after use. Fill status is monitored on the gauges so that a fading regulator curve is not mistaken for a miss.
Night work, where lawful, is supported by the same rail that accepts a compact illuminator or a dedicated night optic. Care is taken so that additional weight on the muzzle does not change point of impact without a fresh confirmation shot. In addition, electronic fire-timer and mode settings can be used so that an accidental second pulse is less likely during a tense wait.
Small-Game Outings and Still-Hunting Lanes
Woodland edges, hedgerows, and field margins reward a short, balanced carbine. Movement through brambles and over stiles is less tiring when length and mass have been reduced. A height-adjustable cheekpiece keeps the eye behind the optic when clothing thickness changes between seasons. Consequently, the same zero can be maintained whether a light shirt or a winter jacket is worn.
Shot opportunities on rabbits, squirrels, and similar quarry are often brief. A sidelever that can be cycled quietly, combined with a seated magazine, allows a second pellet to be readied without a large arm movement. Dual regulators help keep velocity inside a usable window as the bottle pressure falls, so the hold-over learned at the start of the outing remains closer to the hold-over needed at the end.
Power must match both the animal and the law. Where only low energy is permitted, placement becomes even more critical and ranges are kept short. Where FAC-level energy is authorised, heavier slugs in .22 or larger calibres may be chosen, yet the compact 17-inch barrel still requires that the projectile is proven in that liner. Inclusive hunting practice includes knowing when a shot should be refused: wind in the leaves, an unclear background, or an animal that is only half visible.
A removable bottle simplifies topping up from a pump, a tank, or a portable compressor at the vehicle. Three gauges confirm that the fill has actually reached the intended pressure. After the outing, the rifle is wiped, the magazine emptied, and the case used so that grit is not carried into the next session.
Travel, Vehicle Use, and Discrete Transport
Overall length near 28.5 inches allows the rifle to be placed in many vehicle cases and lockable cabinets that reject longer sporters. A custom hard case is supplied so that the optic remains protected during transport. Inclusive travel planning includes local transport rules: some regions require the rifle to be covered, separated from projectiles, or declared. Those rules are followed rather than assumed.
At a destination range, setup time is short. The bottle can be filled, the magazine loaded, and the cheekpiece returned to a marked height. Because regulators can be adjusted without degassing, a travel tune that survived baggage handling can be refined on the first target rather than requiring a full strip. Tool-free barrel change, where extra liners are carried, allows a calibre swap between a morning practice session and an afternoon hunting permission, provided both uses are legal.
Public-facing handling stays low-key. The moderator and compact outline reduce the “long rifle” silhouette that sometimes attracts unwelcome attention at rest stops. Nevertheless, the rifle is never left visible in an unattended vehicle. Security and courtesy toward people who are not shooters remain part of responsible use.
Training New Shooters and Shared Club Use
Adjustable furniture and a programmable trigger make the platform suitable for shared use when supervision is present. A lighter second stage can be set for a junior or a shooter with reduced hand strength; a more deliberate pull can be restored before the rifle is returned to field duty. Inclusive language and inclusive coaching matter: the goal is a safe, successful first group, not a demonstration of maximum power.
A mild regulator setting stretches the 300 cc fill so that a lesson can be completed without a mid-session bottle change. Medium report helps instructors speak without shouting. Magnetic magazines can be pre-loaded by the coach so that the student handles only the sidelever and trigger until loading skill is added later.
Rules of the range are explained before the first pellet is fired. Muzzle awareness, finger off the trigger until the sight picture is accepted, and a mandatory pause after a miss are practised until they are automatic. Electronics such as fire-timer modes can be used to discourage rushed strings during early lessons.
Precision Strings, Benchmarking, and Optic Work
Although the Compact is shorter than a full-size competition rifle, it remains capable of tight groups when pellet, dwell, and regulator are aligned. Bench or bipod work is used to establish a true zero and to map drop at several distances. A spirit level in the mount reduces cant error that is easy to introduce with a short stock.
Slug testing is conducted separately from pellet testing. Heavier slugs may show different stability in a 17-inch tube; therefore, group size and remaining energy at the intended distance are recorded rather than assumed from catalogue figures. Wind flags or natural indicators are watched because a compact barrel does not cancel drift.
Accessories that earn their place include a compact bipod, a rear bag, spare magazines already loaded with the chosen projectile, and a notebook or phone log of regulator clicks and dwell values. Inclusive record-keeping means those notes can be read by any authorised user of the same rifle, not only by the person who first set it up.
Weather, Maintenance in the Field, and End-of-Day Routine
Damp grass, dust, and temperature swings are normal outside a club house. The action is kept covered until the shot is taken. After rain, external surfaces are dried and the muzzle is checked for debris before the next fill. O-rings and the valve benefit from the included reseal kit being kept with the case rather than left at home.
Fill hoses and probes are kept clean. Water or grit introduced at the fill port shortens seal life. Gauges are glanced at before packing up so that a slow leak is noticed the same day. Batteries or charge status for any electronic fire-control features are verified on a schedule, because a dead controller can interrupt an otherwise perfect outing.
End-of-day routine is simple and inclusive: magazine emptied, safety applied, bottle pressure noted, optic caps fitted, rifle cased. Legal transport and storage rules of the destination are followed. When those habits are consistent, the compact platform remains ready for the next quiet practice session, the next permission, or the next shared lesson without drama.
Frequently Asked Questions
Clear answers are provided below so that setup, legal use, and day-to-day handling can be approached with confidence. Inclusive language is used throughout because shooters of different experience levels, statures, and local regulations share the same questions. Focus remains on safe practice, consistent performance, and responsible ownership rather than on marketing claims.
General Setup and First Use
How should a new rifle be prepared before the first shot?
A full visual inspection is completed first. Consequently, the bottle, fill port, magazine, and muzzle are checked for transit damage or debris. Moreover, the owner’s manual is read before air is introduced. Fill pressure must not exceed the published 4,350 PSI (300 BAR) limit. After a conservative fill, a few settling shots are fired into a safe backstop so that seals and electronics can be confirmed. In addition, eye protection is worn from the first pellet onward.
Is a scope included?
An optic is not typically supplied in the standard carton. A lightweight Picatinny rail is fitted so that a suitable scope or red-dot sight can be mounted by the owner. Therefore, ring height should be chosen to match the adjustable cheekpiece. A spirit-levelled mount is recommended so that cant error is reduced on a short stock.
What is supplied in the box?
The following items are commonly included:
- Custom hard case
- Calibre-specific magnetic-lock magazine
- Fill probe
- Tool / Allen set
- Full factory reseal kit
Optional extras such as spare magazines, extra barrel liners, and bipods are purchased separately.
Calibres, Projectiles, and Magazines
Which calibres can be used on the compact platform?
Retail listings most often cover .22, .25, and .30. Tool-free liner changes are supported on the design, so a second barrel can be fitted when it has been obtained from a compatible source. Inclusive use means only the liner and magazine that match the chosen projectile diameter are installed together.
How many rounds does each magazine hold?
Published capacities are typically 30 rounds in .22, 25 rounds in .25, and 22 rounds in .30. Magnetic closure and automatic seating are used. Some larger-calibre magazines require a full rotation of the inner core before every pocket is filled; the sequence in the manual should therefore be followed.
Can slugs and pellets be mixed in the same magazine?
Mixing is not advised. Different lengths and ogives can cause feed problems or a shift in point of impact. Separate magazines, or a complete unload and reload, are preferred when projectile type is changed. Likewise, damaged, oily, or undersize ammunition should be rejected.
Does twist rate matter?
A 17-inch Compact barrel is commonly listed with a faster twist in .22 (about 1:15.75) and a slower twist in .25 and .30 (about 1:24). Group size still depends on the individual projectile. Several weights and brands should be tested at the distances that will actually be used.
